Low Voltage Dimmer for 12V-15V AC Landscape Lighting for Dimmable LED, Halogen and Incandescent Bulbs with Remote Control 120W Max

120W Low Voltage Dimmer for 12V-15V AC Landscape Lighting

Key Features:

• Wide Compatibility: Fully compatible with landscape lighting fixtures. Ideal for low-voltage halogen, incandescent, and LED landscape lights. Ensure the dimmer is connected to the low-voltage line and the total wattage does not exceed 120W.

• Optimal Voltage Range: Designed for 12-15V AC systems. Please note, this dimmer is not suitable for DC systems and requires an additional low-voltage transformer (sold separately).

• Seamless Dimming: Achieve 0%-100% brightness control using the included remote. The minimum brightness setting helps prevent flickering due to power fluctuations, ensuring stable performance.

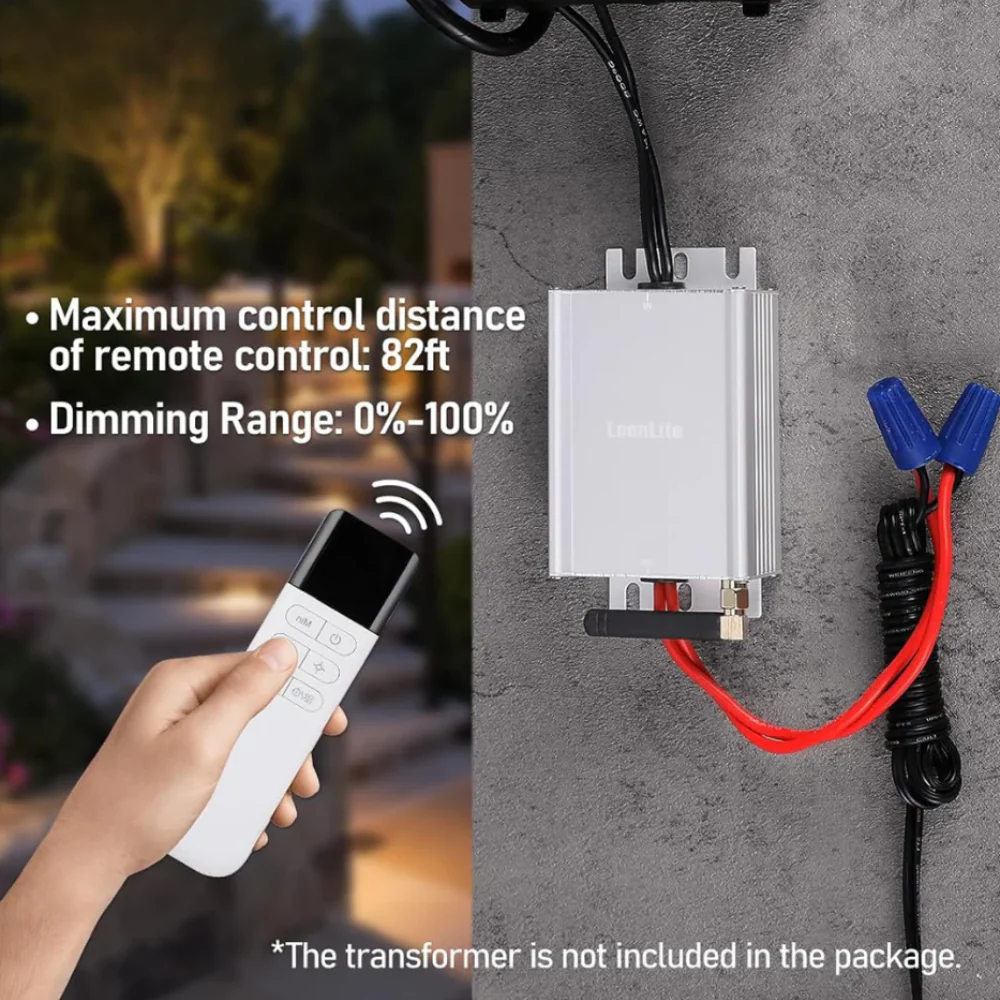

• Remote Convenience: Enjoy hassle-free operation with a remote control that works up to 82ft away, even through walls. A handy hanging base is included for easy storage.

• Built for Durability: With an IP67 waterproof rating, this dimmer is built to withstand harsh weather conditions. It also includes an automatic overload circuit breaker for added safety. Backed by a 24-month warranty for peace of mind.

Important Note:

• Ensure the connected LED landscape lights operate within the dimming module's working voltage range of AC 12-15V.

• Avoid connecting the dimming module to a voltage source outside the specified range to prevent equipment damage or safety risks.

• When using multiple LED fixtures, ensure their combined power does not exceed the dimming module's maximum load capacity and distribute power evenly.

• Do not reverse the input and output wires. The black wire is for input (in), and the red wire is for output (out).

• Keep the dimming module away from environments with strong electromagnetic interference to maintain proper remote control function.

• If multiple devices nearby use similar frequency bands, be aware of potential signal interference and adjust the module's location to reduce disruptions.

• The total wattage of connected fixtures must not exceed the lower of the maximum load capacity of either the low-voltage transformer or the dimmer. For example, if you connect this 120W dimmer to a 60W transformer with a maximum load of 48W, the maximum wattage of the fixtures you can install is 48W.

Pairing Instructions:

1. Power on the Dimmer: Ensure the dimmer is connected to a power source and turned on.

2. Activate Pairing Mode:

   • Press and hold the pairing button on the dimmer for a few seconds until the indicator light on the dimmer flashes. This indicates that the dimmer is in pairing mode.

3. Pair the Remote:

   • On the remote control, press and hold the designated pairing button (refer to the remote's manual for the specific button) within 10 seconds of activating pairing mode on the dimmer.

4. Confirm Pairing:

   • The indicator light on the dimmer will stop flashing, and the lights connected to the dimmer may blink to confirm successful pairing.

5. Test the Connection:

   • Use the remote to adjust the brightness or turn the lights on/off to ensure the pairing was successful.

Reset and Re-Pairing (if needed):

If the pairing is unsuccessful or you need to re-pair the remote:

1. Reset the dimmer by turning it off and back on.
2. Repeat the pairing steps above.
